New OSRAM OSTAR Compact 2×2 LED doubles light output for high-power projectors

OSRAM OSTAR Compact 2×2 is setting new standards in brightness for the projection market.

OSRAM Opto Semiconductors has added another LED to its portfolio for projection applications. The new OSRAM OSTAR Compact 2×2 is the brightest LED of its type on the market. With twice the brightness in all colors and near record-breaking green values, this new version is an excellent addition to the existing versions of the OSTAR Compact series. Its high performance makes it ideal for high-power projectors for the commercial and domestic sectors.

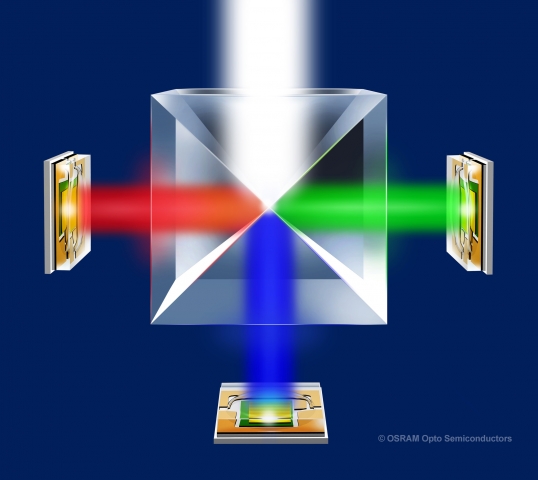

With the new 2×2 version, the OSTAR Compact series of LEDs now offers even greater flexibility. With just one set of Red, Converted Green and Blue LEDs, it is now possible to achieve a luminous flux of 400 lm from the projector. The new version has been designed specifically for imager diagonals between 0.4 inches and 0.55 inches. If multiple sets of these LEDs are combined for larger imager diagonals, the high brightness levels needed for office projector applications can be achieved.

The OSTAR Compact 2x2LED offers the best ratio of light to size available. With dimensions of 5.8 x 4.6 mm and an output of 85 lm per mm² of footprint, it is the brightest LED in this package class on the projection market (measured in pulse mode for green at an operating current of 6 A). It contains two 2 mm² chips and produces twice the output of the standard Compact LED with one chip.

The package is available in Red, Converted Green and Blue. In Converted Green, for example, the LED has a typical luminous flux of 2400 lm in pulse mode at an operating current of 6 A. No other comparable LED has achieved this before. This enormous increase in output is based on the two integrated blue chips using state-of-the-art ThinGaN technology and the green phosphor converter. Since a greater proportion of green than red or blue is needed to produce white light, the increase in brightness has a significant effect on the overall system brightness of the projector.

According to Wolfgang Schnabel, Product Manager for the OSTAR Compact series, “Each chip in the new OSTAR Compact 2×2 can be individually controlled, which offers higher flexibility for the design engineer in the choice of LED drivers.  The two chips can be connected in parallel or in series, with the latter providing higher efficiency and more readily available standard drivers.”
