Injectable Hydrogels Could Prevent Future Heart Failure

During a heart attack, clots or narrowed arteries block blood flow, harming or killing cells within the tissue. But the damage doesn’t end after the crushing pain subsides. Instead, the heart’s walls thin out, the organ becomes enlarged, and scar tissue forms. If nothing is done, the patient can eventually experience heart failure. But scientists now report they have developed gels that, in animal tests, can be injected into the heart to shore up weakened areas and prevent heart failure.

The researchers presented their work Aug. 22 at the 252nd National Meeting & Exposition of the American Chemical Society (ACS). ACS, the world’s largest scientific society, is holding the meeting here through Thursday. It features more than 9,000 presentations on a wide range of science topics.

Heart attacks strike 750,000 people each year in the U.S., according to the American Heart Association. And more than 5 million U.S. residents are living with heart failure, with symptoms that progress from fatigue and shortness of breath to eventual death. “Heart failure is a huge problem, and few therapies are available for these patients,” said Jason A. Burdick, Ph.D., leader of the study.

Treatments include lifestyle changes, medication, implants, or heart transplants. Burdick, who is at the University of Pennsylvania (Penn), explains that these options often don’t work well or, in the case of transplants, are hard to come by. So scientists are pursuing other treatment methods. For instance, researchers at other institutions have done animal studies in which they injected cells into the damaged section of the heart to try to repair damage. To prevent the cells from leaking out, those researchers embedded them in biodegradable “hydrogels”—water-swollen networks of polymer chains with a consistency similar to Jell-OTM. But the scientists noticed something odd when they ran control experiments in which they injected the hydrogel without added cells: Some of the animals’ hearts still showed improvement compared with untreated animals.



Based on those findings, a handful of labs are now experimenting with hydrogel treatments, including two materials that are in clinical trials. Neither is from Burdick’s lab, but as he notes, “It’s important we all keep moving forward to figure out how this therapy could be used, because it’s different than any current treatment.” In addition, different types of hydrogels could suit different patients’ needs.

Some experimental heart attack treatments require surgery to open up the chest, but the two hydrogel materials already in clinical trials are injected into the damaged tissue through a long catheter inserted through the skin—eliminating the need for open-chest surgery.

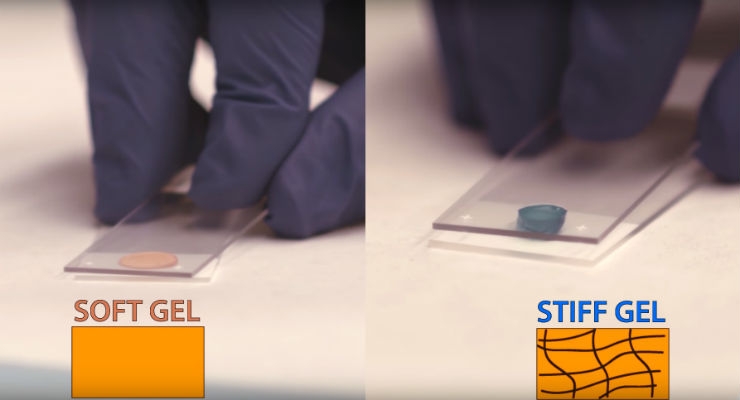

Burdick and his graduate student Christopher B. Rodell, in collaboration with Robert C. Gorman, M.D., also at Penn, are using this same minimally invasive technique in their own work. But his team has gone a step further by identifying properties that would be useful in treating heart attack patients and then designing hydrogels with those properties. For instance, his group developed a hydrogel that forms additional crosslinks between the polymer chains after injection. The resulting material is stiffer and lasts longer than a gel without these additional crosslinks and the gels in clinical trials.

In fact, Burdick’s gel is unique among hydrogels in providing mechanical support to stabilize the damaged area. In sheep studies, this gel limits formation of scar tissue, thinning of the heart’s walls and enlargement of the heart. By preserving the organ’s size, the gels also reduce leakage of blood through the mitral valve. Together, these benefits maintain the heart’s blood-pumping ability and could stave off heart failure.

The team’s materials are based on hyaluronic acid (HA), a type of sugar molecule that occurs naturally in the body. The researchers modified the HA molecules by attaching adamantane and cyclodextrin groups to allow the gels to flow through catheters, and they added thiol and methacrylate groups to enable post-injection cross-linking to stiffen the hydrogel. Once the researchers finalize the hydrogel formulation and delivery method, they hope to partner with a catheter firm to bring a product to market. Burdick’s team and other research groups are also designing hydrogels that contain drugs or cells that can repair heart tissue.
